| Features | |
|---|---|
| Interface | SATA III |
| Flash Type | MLC |
| P/E Cycle | 3,000 |
| Capacity | 32GB – 256GB |
| Max. Channels | 2 |
| Sequential R/W (MB/s, max.) | 530/210 MB/s |
| Max Power Consumption | 1.4W (3.3V x 422 mA ) |
| Thermal Sensor | Yes |
| External DRAM Buffer | |
| H/W Write Protect | Optional |
| ATA Security | Yes |
| S.M.A.R.T. | Yes |
| Dimensions | Width: 22.0 mm Length: 42.0 mm Height: 3.2 mm |
| Environment | Vibration: 20G @7~2000Hz Shock: 1500G @ 0.5ms Operational Temperature: -40°C to +85°C Storage Temperature: -55°C ~ +95°C MTBF: 3 million hours |
| Part Number | RS-INO-M2B2242-xGI (x = GB)
|

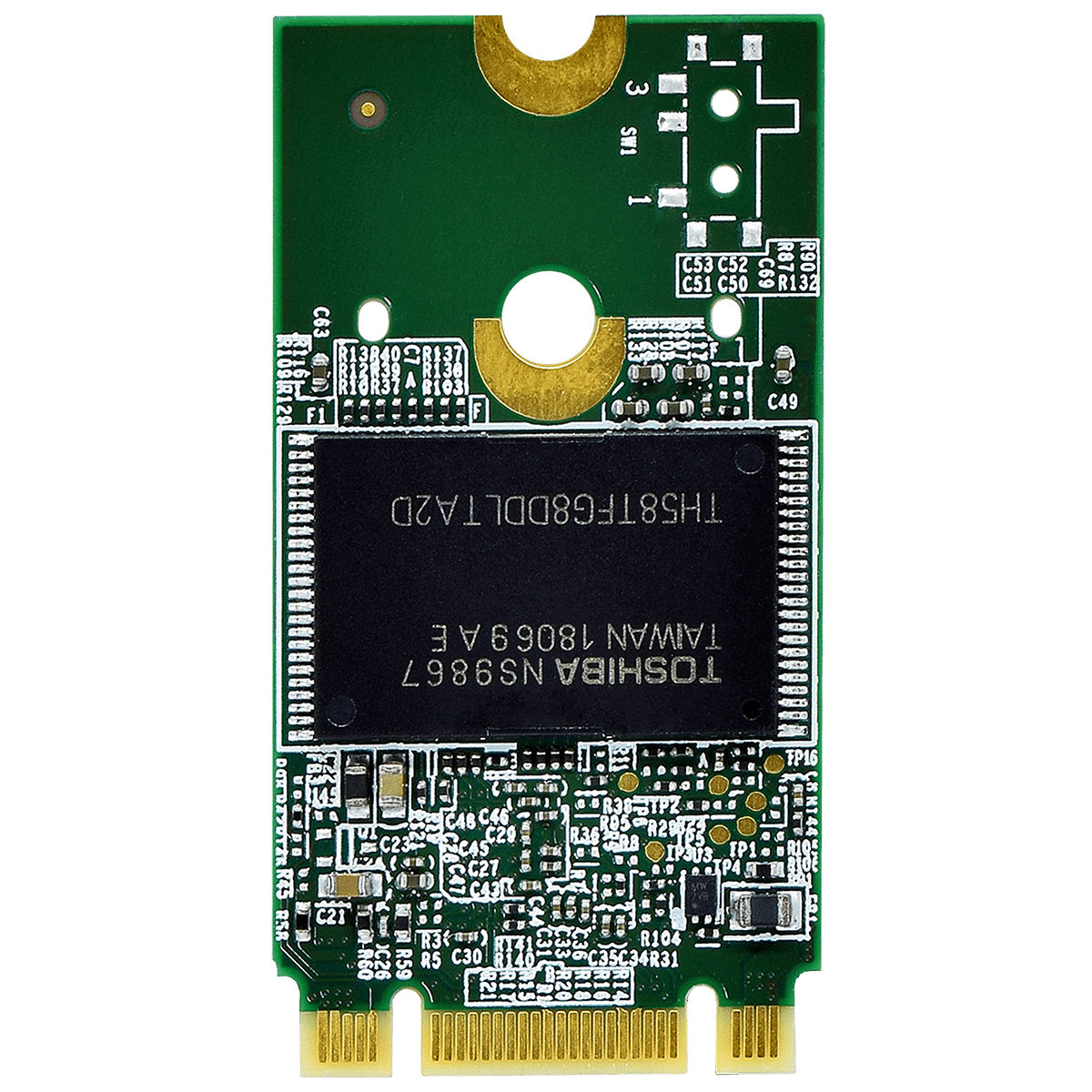

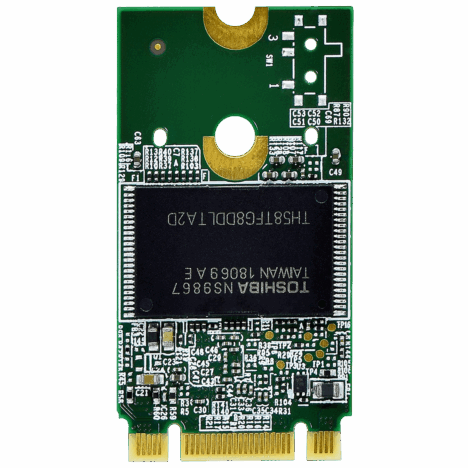

M.2 SSD (MLC) M.2 SSD (MLC)
Innodisk M.2 (S42) 3ME4 is characterized by L3 architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L3 architecture is L2 architecture multiplied LDPC (Low-Density Parity Check). L2 (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear-leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.
Innodisk M.2 (S42) 3ME4 is designed for industrial applications and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
DATA SHEET PRODUCT INFOFeatures
- SATA III solution for industrial field
- Exclusive L3 architecture
- DRAM-less, 100% data integrity
- Excellent random performance
- Supports TRIM/NCQ/SMART
- Built in iData Guard
- Compatible with M.2 2242-D2-B-M standard
- Designed with hardware LDPC ECC engine
- Tested and approved for use with WINSYSTEMS embedded computers
- M.2 SSD (MLC) Datasheet (PDF)
