| Features | |
|---|---|
| PS-RS50-5-0 | 50W power supply +5V output |
| PS-RS50-5-EBC | 50W power supply +5V output with AC power cord and DC cable for EBX SBCs |
| PS-RS50-5-EPX | 50W power supply +5V output with AC power cord and DC cable for EPIC SBCs |
| PS-RS50-5-PCM | 50W power supply +5V output with AC power cord and DC cable for PC/104 SBCs |
| PS-RS50-5-PXM | 50W power supply +5V output with AC Power cord and DC cable for micro-ATX SBCs |

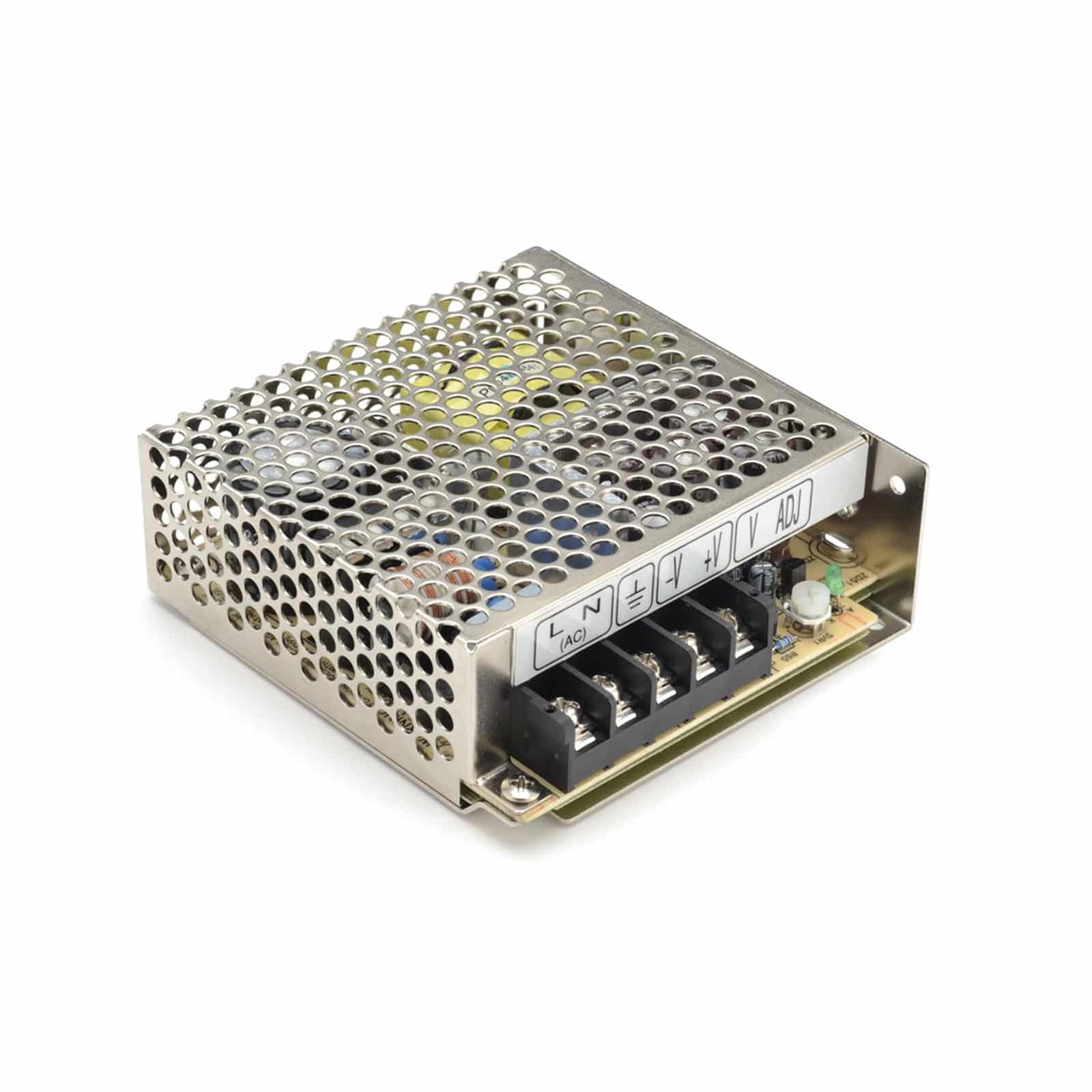

PS-RS50-5 50W Universal A/C Switching Power Supply with +5V DC output
Description
WINSYSTEMS’ PS-RS50-5 is a small, convection cooled 50W power supply for embedded systems. It is a universal design that accepts 88 to 264VAC input and generates up to 10A of current at +5 volts. The +5 volt output can be adjusted with an on board trimpot. The PS-RS50-5 is small, measuring only 99 x 97 x 36mm.
Features
- PS-RS25-5-0 Datasheet (PDF)
Datasheets
- Product EOL Notice
Product Change_Notice
- CBL-PWR-602-18 | Power – Two Spade Lugs and PBReset, 18″
- CBL-PWR-502-18 | Power – Two Spade Lugs and PBReset, 18″
- CBL-PWR-402-18 | Power cable +5V, GND, and pushbutton to EPX, 18″
- CBL-PWR-302-18 | Power cable +5V, GND, and pushbutton to EBC, 18″
- CBL-PWR-202-96 | Power Cable, 3 ring terminals to A/C Plug (US), 96
