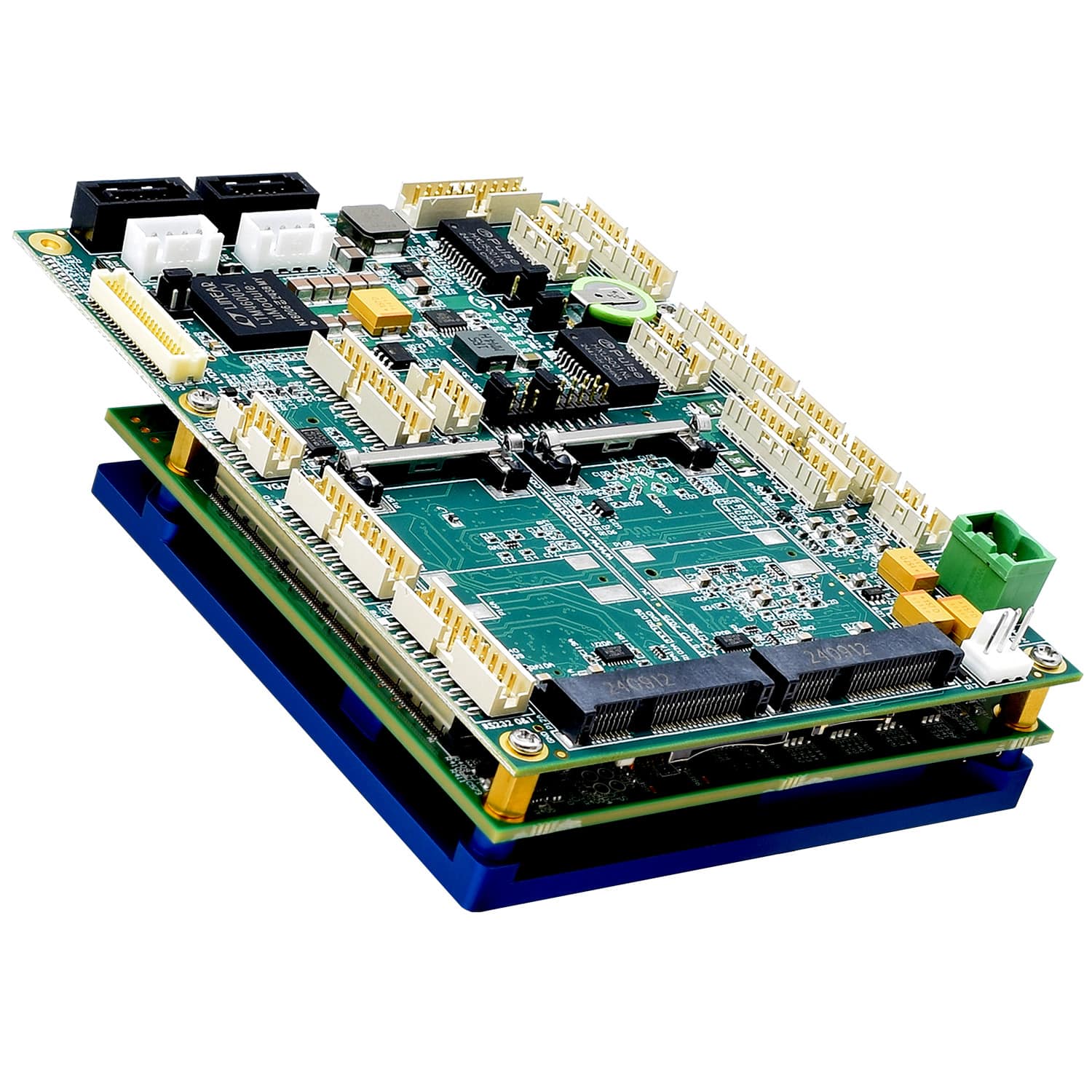

SBC-472-460 Rugged SBC with Intel® Core™ i7-1185GRE COM Express Type 6 Module on Carrier and USB 2.0

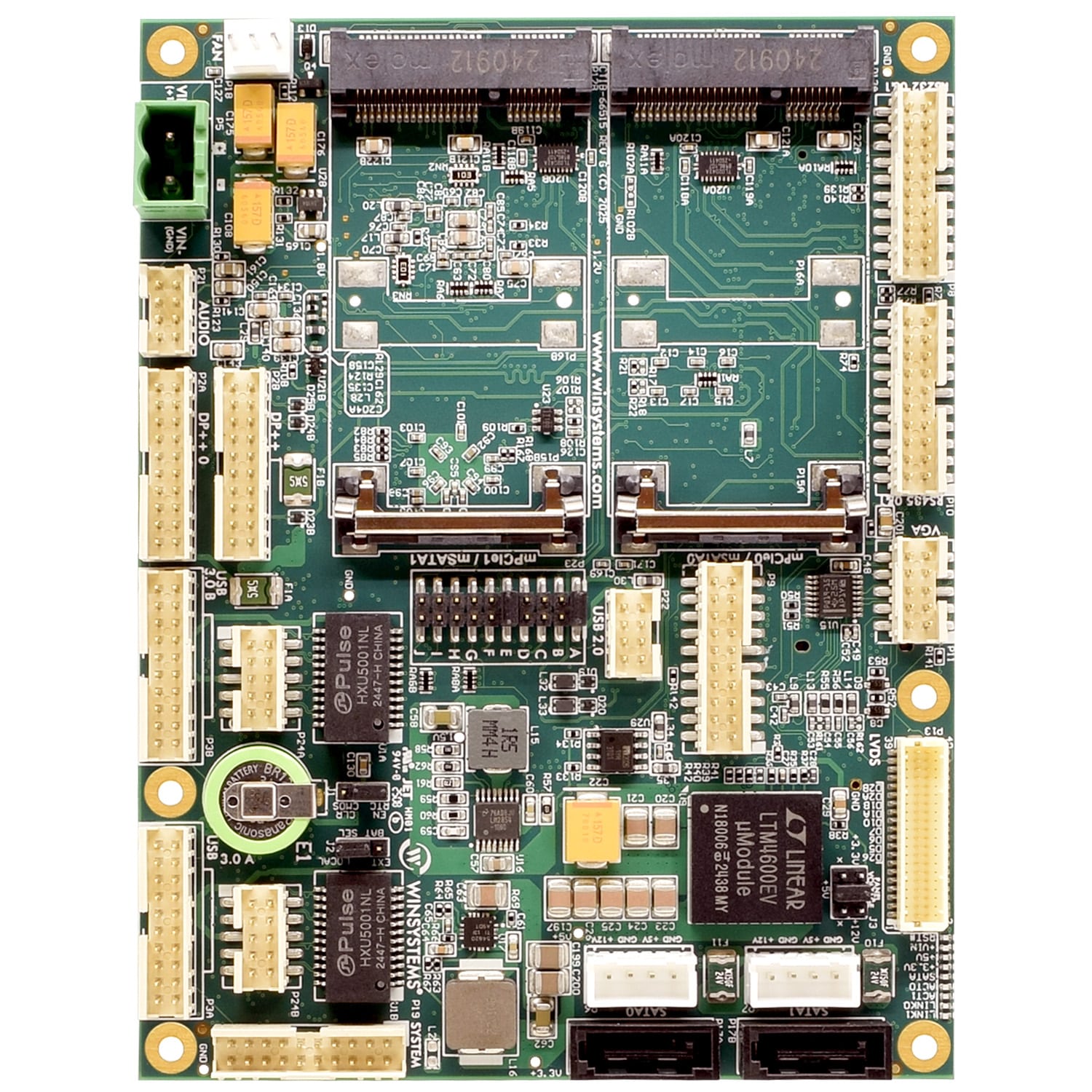

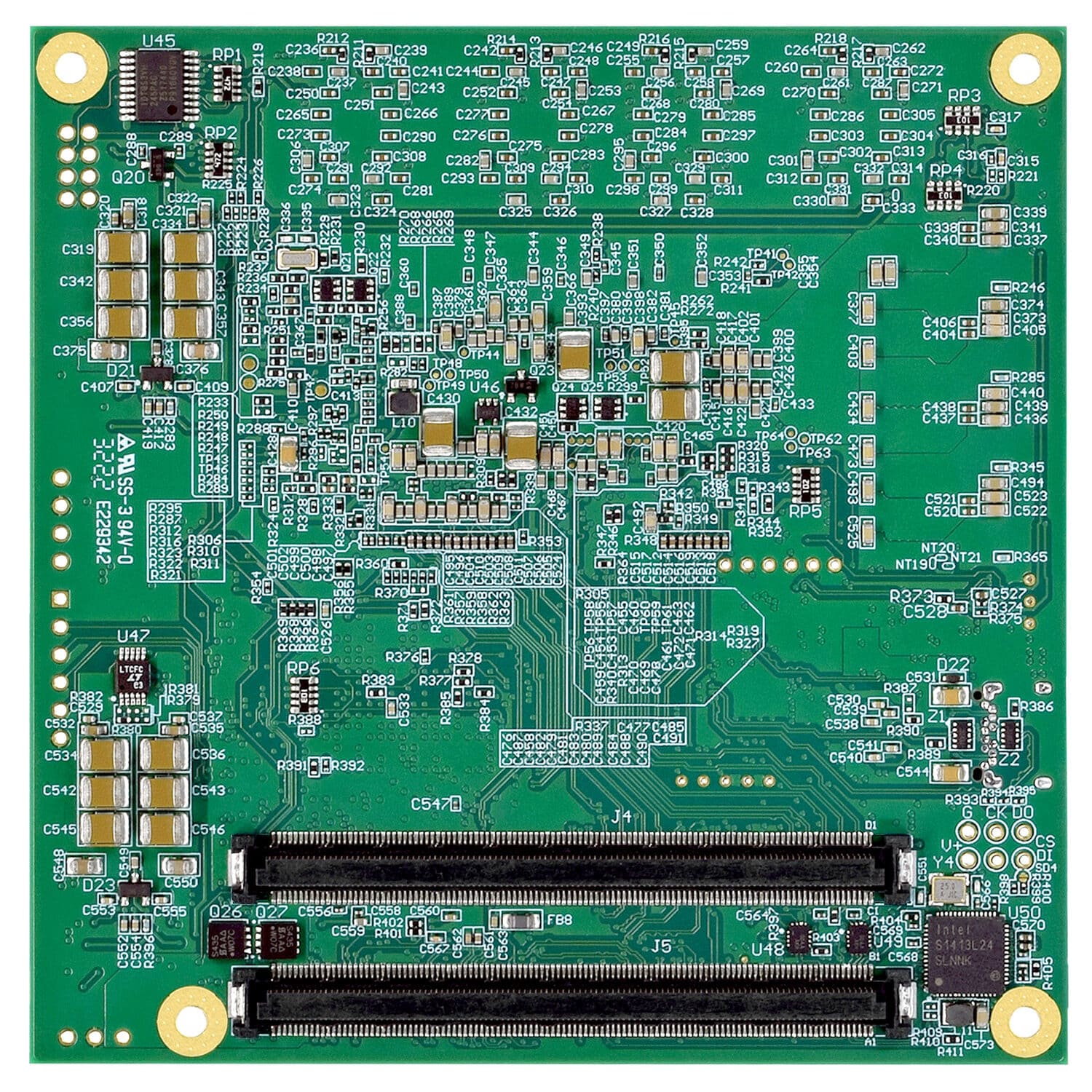

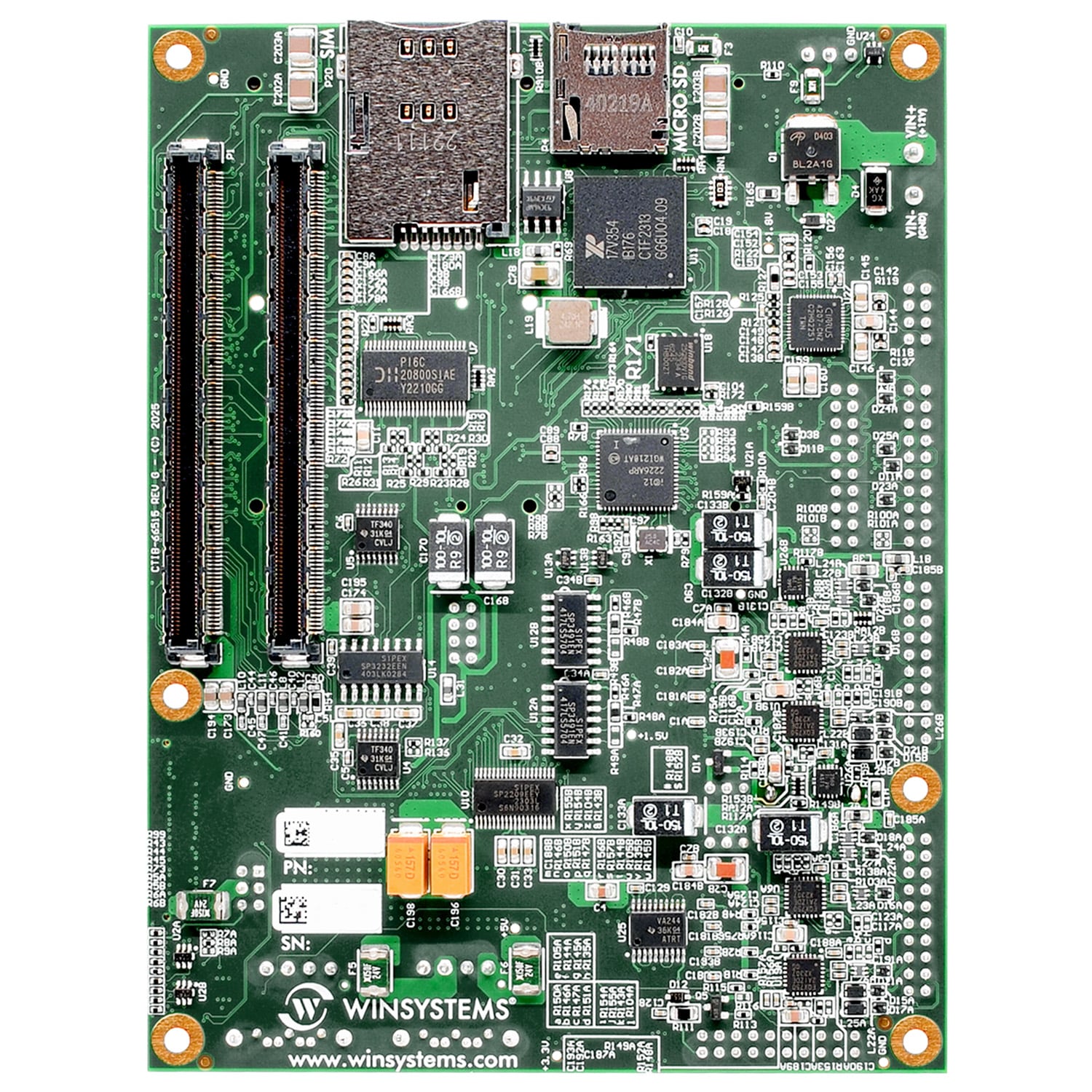

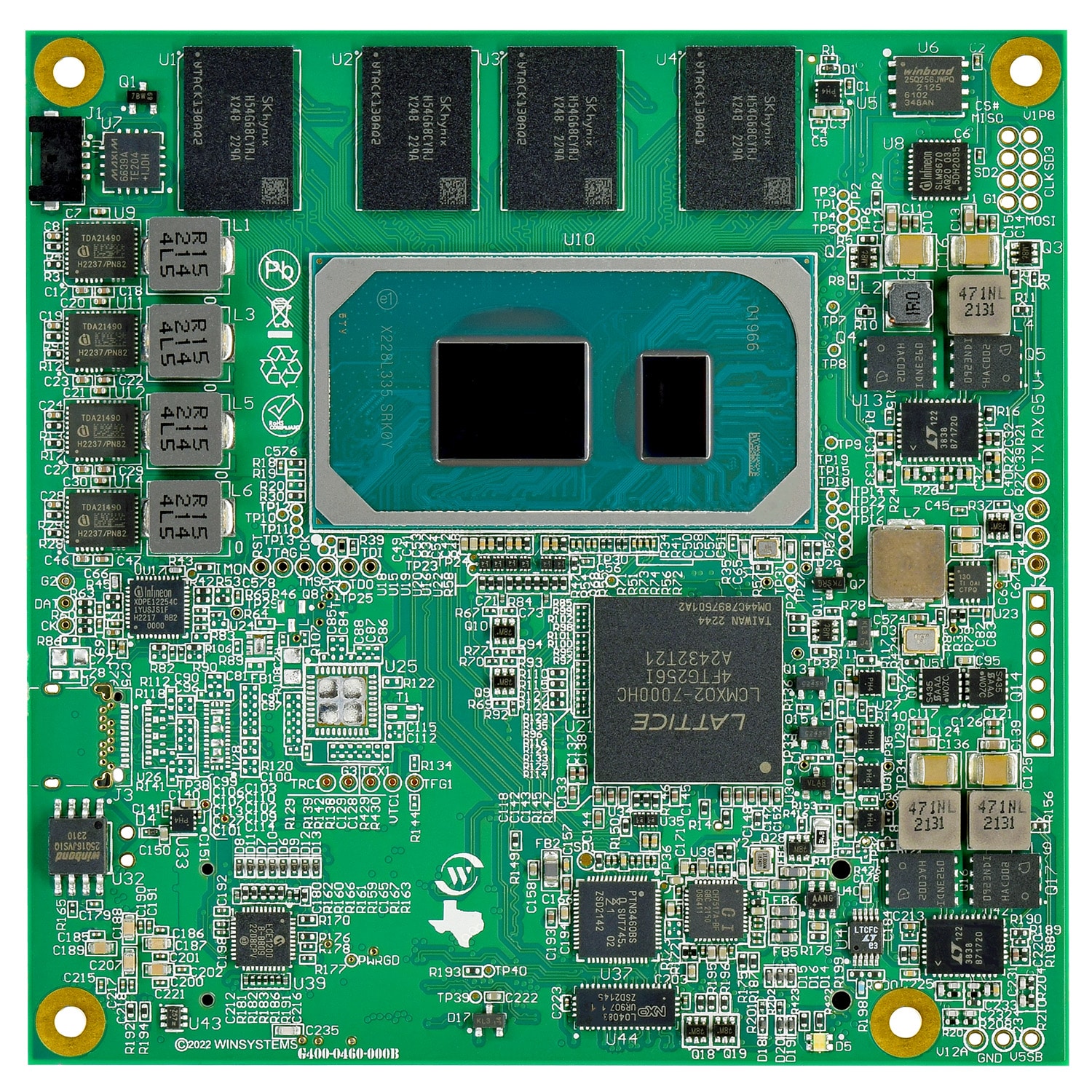

The SBC-472-460 is a rugged small form factor embedded computer with an extended temperature operating range of -40° to +85°C with an appropriate thermal solution. It features an Intel® Core™ i7-1185GRE (11th Gen.) COM Express Type 6 Module on a COM Express Type 6 Basic carrier board, balancing performance with power efficiency. Features include on-board discrete TPM 2.0 hardware security, support for multiple displays, 8x USB 2.0 and expansion options. It supports Windows 10 IoT, Windows 11 IoT, Linux Ubuntu, and other x86 real-time operating systems.

The SBC-472-460 is designed to enable a broad spectrum of use cases across multiple industry sectors including transportation and energy management, industrial automation, building automation, digital signage, and more.

DATA SHEET PRODUCT INFO

-40° C to +85° C

ROHS COMPLIANT

Features

  • Compact form factor for space-constrained applications
  • Intel® Core™ i7-1185GRE (11th Gen.)
  • -40°C to +85°C extended temperature range with thermal solution
  • Extended product life cycle of 10+ years
  • High MTBF
  • Ruggedized locking pin header connectors
  • Mini PCIe expansion
  • 8x USB 2.0
Features
PROCESSOR

Intel® Core™ i7-1185GRE (11th Gen.)
Core Speed: 2.8 (4.4) GHz
Cache: 12 MB
Power: 28W typical

OPERATING SYSTEM

Linux Ubuntu, Windows 10/11 IoT, other x86 real-time OS

SOFTWARE

Custom configurable UEFI-based AMI BIOS
System Management Libraries and Tools

SECURITY

On-board discrete TPM 2.0 hardware security
vPro® Security Platform

MEMORY

32GB LPDDR4

STORAGE

2x SATA ports with External Vertical Locking Connectors

DISPLAY

2x DisplayPort++ (DDI) interface which can be used for DisplayPort, HDMI, DVI or VGA
1x VGA (Analog/CRT)
1x LVDS interface (single ch 24-bit, dual ch 48-bit)

AUDIO

HD Audio (Cirrus Logic CS4207 codec)
1x stereo input
1x stereo output

NETWORK

Port 0, Intel I226IT, 2.5Gb Ethernet
Port 1, Intel 82574I, 1Gb Ethernet

EXPANSION

MiniPCIe Expansion: 2x full-length cards (Both sockets have PCIe and USB)
1x SIM Card Expansion option

I/O

8-bit GPIO
8x USB 2.0 (2 used for miniPCIe)
1x Console RS-232 (TX/RX)
2x RS-232 (w/ full modem signals)
2x RS-422/485
SMBus
I2C

POWER

Input: Single +12V input +/- 5% (5mm pitch terminal connector)
Power Supply: > 90W power budget recommended

THERMAL OPTIONS

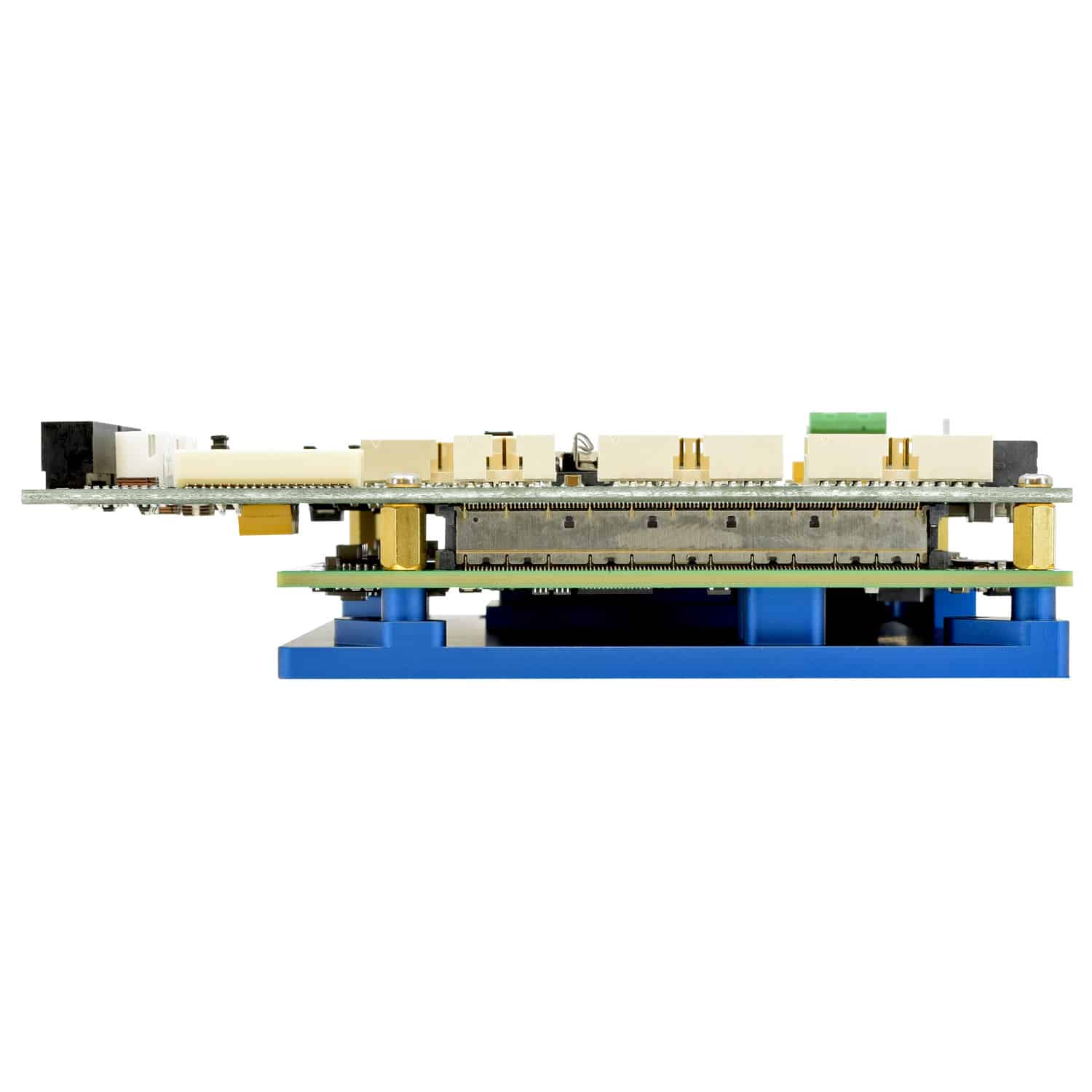

SBC-472-460-1 with Heat Spreader

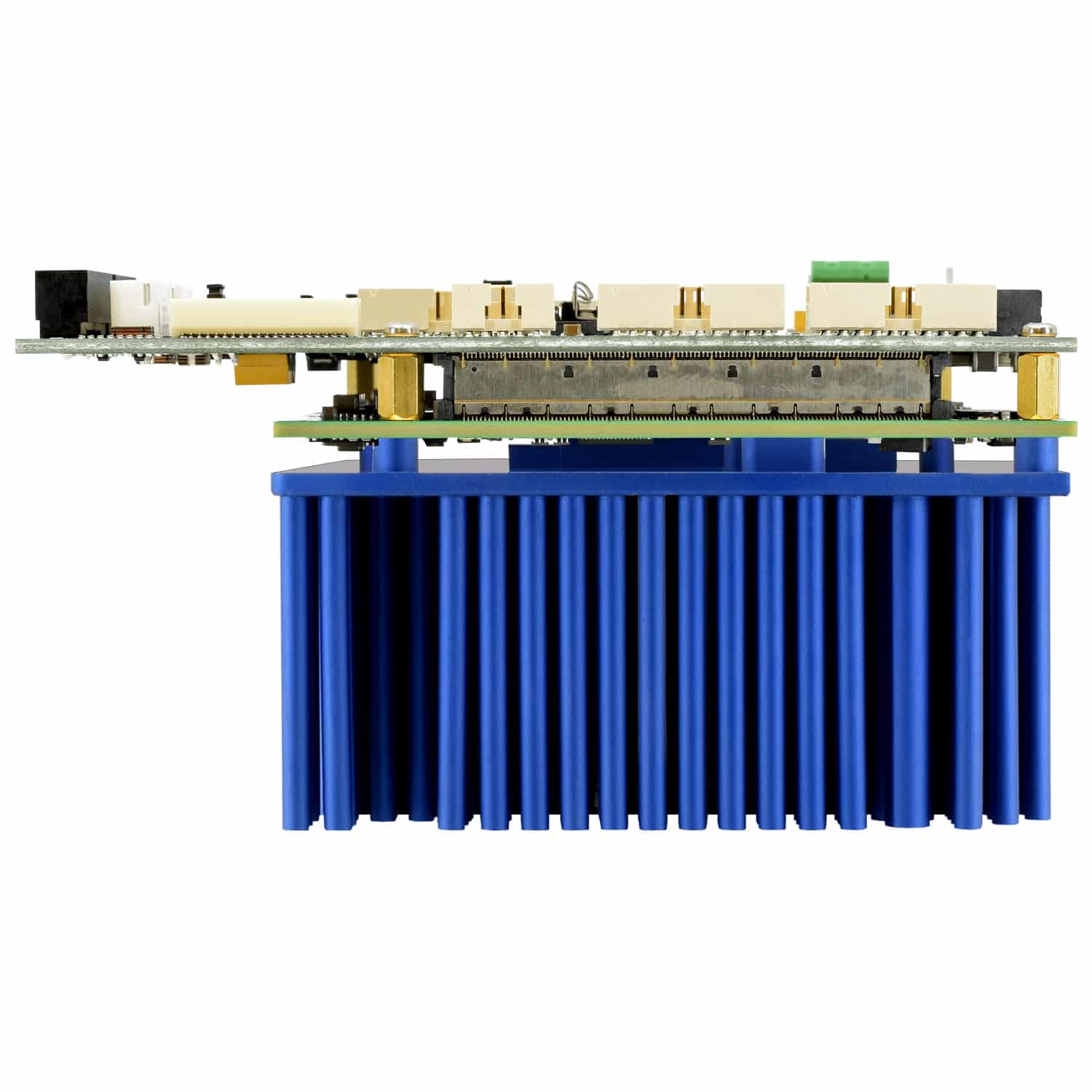

SBC-472-460-2 with Heatsink

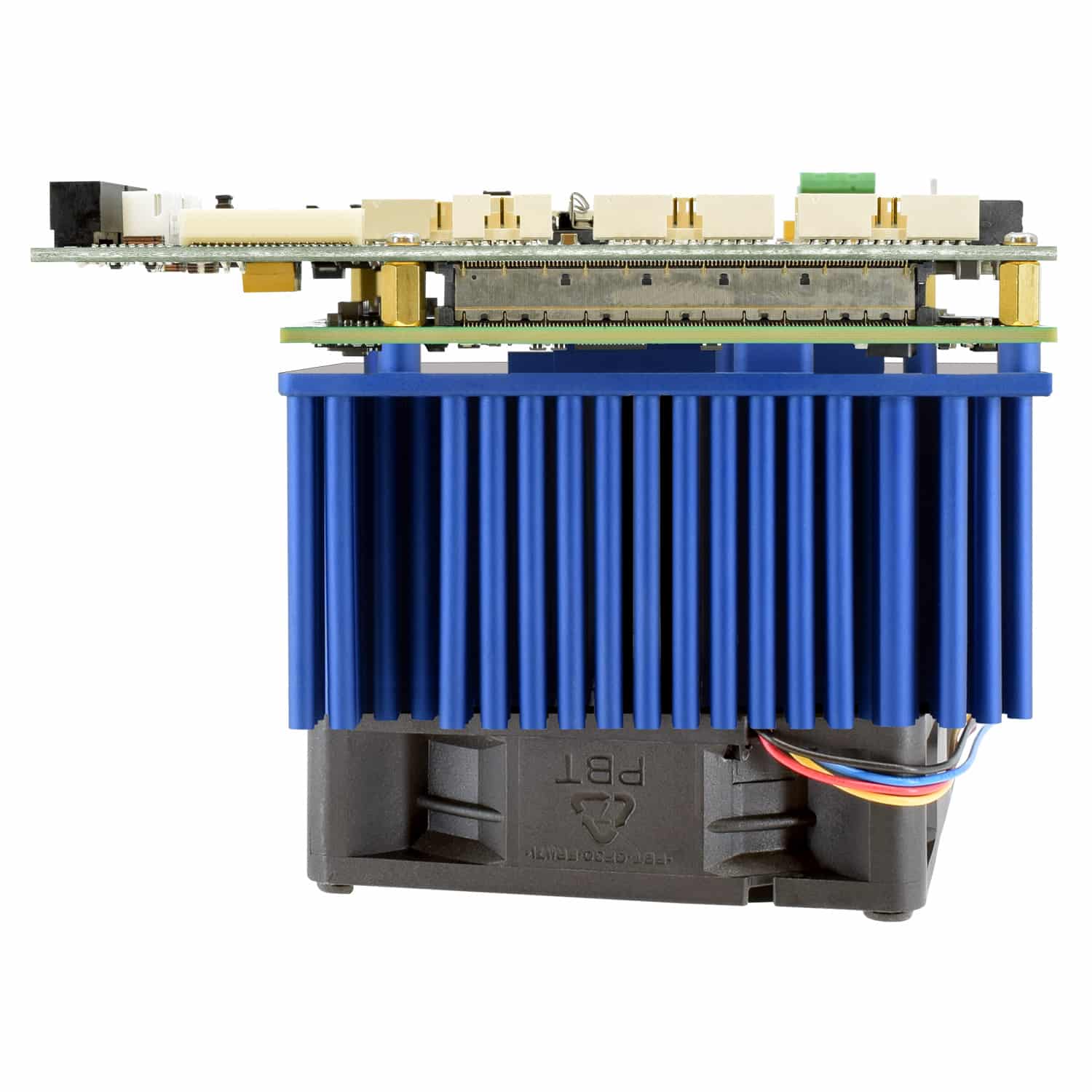

SBC-472-460-3 with Heatsink and Fan

MECHANICAL

SBC-477-460-1 Dimensions: 125mm x 95mm x 34.95mm
SBC-477-460-1 Weight: 320g / 11.3oz
SBC-477-460-2 Dimensions: 125mm x 95mm x 74mm
SBC-477-460-2 Weight: 690g / 24.3oz
SBC-477-460-1 Dimensions: 125mm x 95mm x 99mm
SBC-477-460-1 Weight: 790g / 27.9oz
MTBF: 717128 hrs

ENVIRONMENTAL

Industrial Temperature (w/ -3 Heatsink + Fan): -40°C to +85°C (-40ºF to +185°F)1

Commercial Temperature: 0°C to +60°C (32ºF to +140°F)1

Humidity: 5% to 95% non-condensing

CE Compliant

RoHS Compliant

1 With model -3 or other adequate thermal solution

ORDER INFORMATION

SBC-472-460-1: With Heat Spreader
SBC-472-460-2: With Heatsink
SBC-472-460-3: With Heatsink and Fan
CBL-SET-472-CNT-1
