SBC-472-TS570 Rugged SBC with Intel® Xeon® W-11865MRE COM Express Type 6 Module on Carrier and USB 2.0

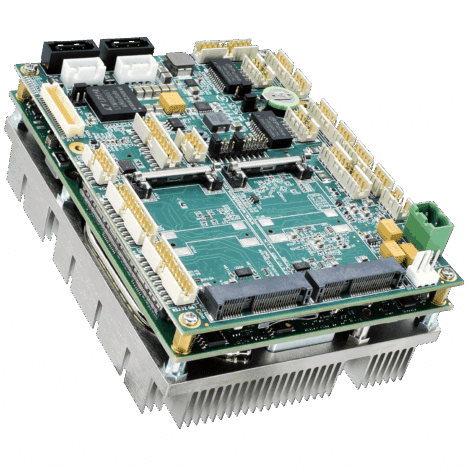

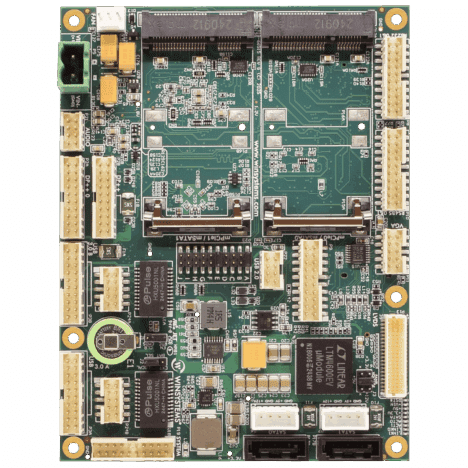

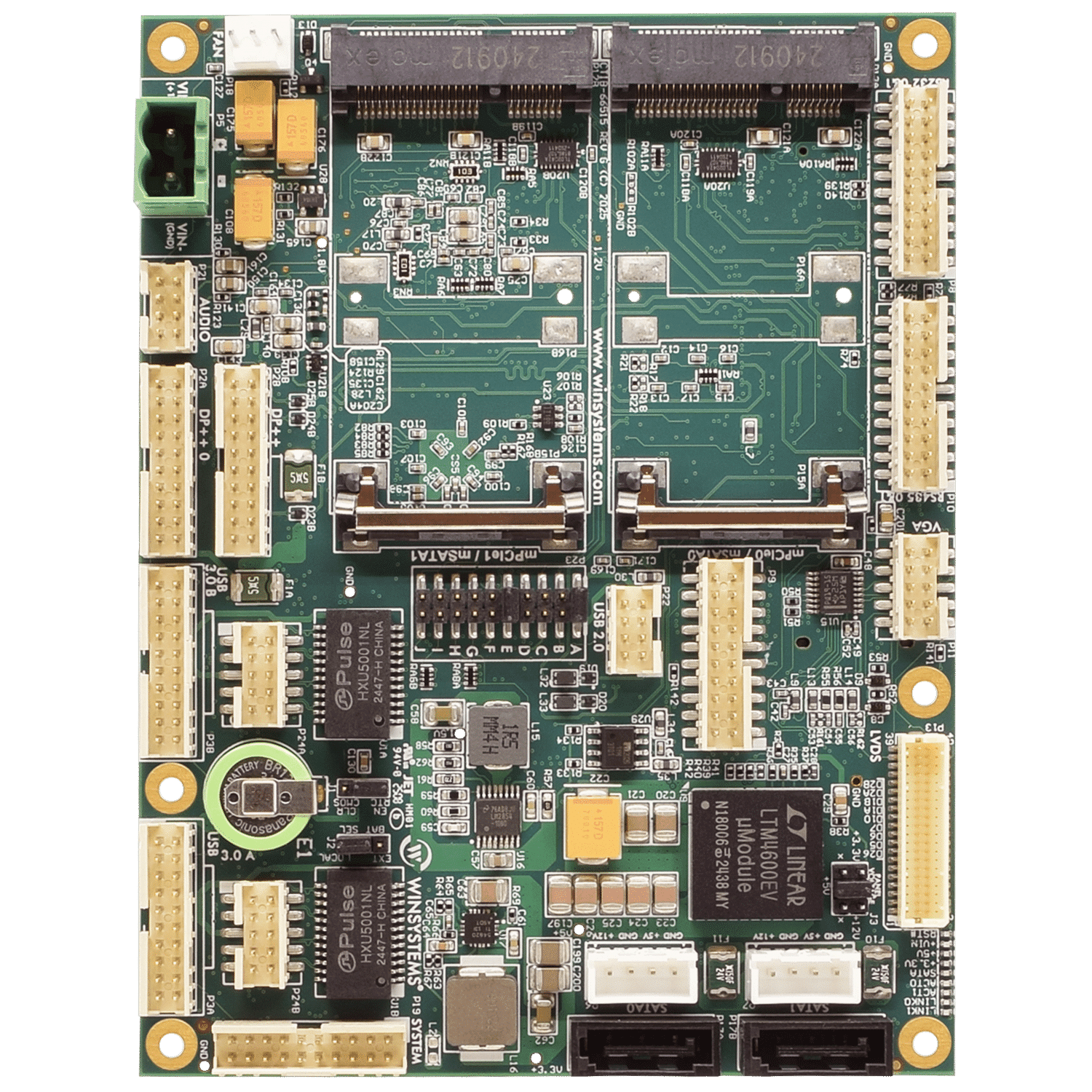

The SBC-472-TS570 is a rugged small form factor embedded computer that features an Intel® Xeon® W-11865MRE processor for energy-efficient processing for demanding applications. The COM Express Type 6 Module mounted on a COM Express Type 6 Basic carrier provides Mini PCIe expansion and 8x USB 2.0 connectivity. Engineered for extreme conditions, it operates reliably within an extended temperature range of -40°C to +70°C with an appropriate thermal solution.

This embedded system includes on-board discrete TPM 2.0 hardware security, supports multiple display configurations, and offers versatile expansion options. It is compatible with Linux, Windows 10 IoT, Windows 11 IoT, and other x86 real-time operating systems.

DATA SHEET PRODUCT INFO

-40°C to +70°C

ROHS COMPLIANT

Features

  • Compact form factor for space-constrained applications
  • Intel® Xeon® W-11865MRE
  • -40°C to +70°C extended temperature range with thermal solution
  • Extended product life cycle of 10+ years
  • High MTBF
  • Ruggedized locking pin header connectors
  • Mini PCIe expansion
  • 8x USB 2.0
Features
PROCESSOR OPTIONS

Intel® Xeon® W-11865MRE
8 Cores, 16 Threads (4.7 GHz)
Cache: 1.5 MB L2
Power: 45W typical

OPERATING SYSTEM

Linux Ubuntu, Windows 10/11 IoT, and other x86 real-time OS

SOFTWARE

Custom configurable UEFI-based AMI BIOS
System Management Libraries and Tools

SECURITY

On-board discrete TPM 2.0 hardware security
vPro® Security Platform

RAM

Comes with 32GB DDR4 SODIMM; expandable to 96GB

STORAGE

2x mini PCIe slots that can be used for mSATA
2x SATA ports with External Vertical Locking Connector

DISPLAY

4K UltraHD
2x DisplayPort++ (DDI) interface which can be used for DisplayPort, HDMI, DVI or VGA
1x VGA (Analog/CRT)
1x LVDS interface (single ch 24-bit, dual ch 48-bit)

AUDIO

HD Audio (Cirrus Logic CS4207 codec)
1x stereo input
1x stereo output

NETWORK

Port 0, Intel I226IT, 2.5Gb Ethernet
Port 1, Intel 82574I, 1Gb Ethernet

EXPANSION

Mini PCIe Expansion: 2x full-length cards (Both sockets have PCIe, USB, and SATA signaling for mSATA operation)
1x SIM Card Expansion option

I/O

8-bit GPIO
8x USB 2.0 (2 used for miniPCIe)
1x Console RS-232 (TX/RX)
2x RS-232 (w/ full modem signals)
2x RS-422/485
SMBus
I2C

POWER

Input: Single +12V input +/- 5% (5mm pitch terminal connector)
Power Supply: > 120W power budget recommended

MECHANICAL

Dimensions:
– SBC-472-TS570-2 with Heatsink: 125mm x 95mm x 53mm
– SBC-472-TS570-3 with Heatsink and Fan: 125mm x 97mm x 53mm
Weight: 590g / 20.81oz

ENVIRONMENTAL

Industrial Temperature (w/ -3 Heatsink + Fan): -40°C to +85°C (-40ºF to +185°F) with model -3 thermal solution1

Humidity: 5% to 95% non-condensing

CE Compliant

RoHS Compliant

1 The COM and carrier are capable to +85°C with adequate thermal solution.

ORDER INFORMATION

SBC-472-TS570-2: With Heatsink
SBC-472-TS570-3: With Heatsink and Fan
For additional RAM order separately:
– SODIMM260-4-3200-16GB (16GB RAM)
– SODIMM260-4-3200-32GB (32GB RAM)
Cable Set: CBL-SET-472-CNT-1
